Hardware Setup

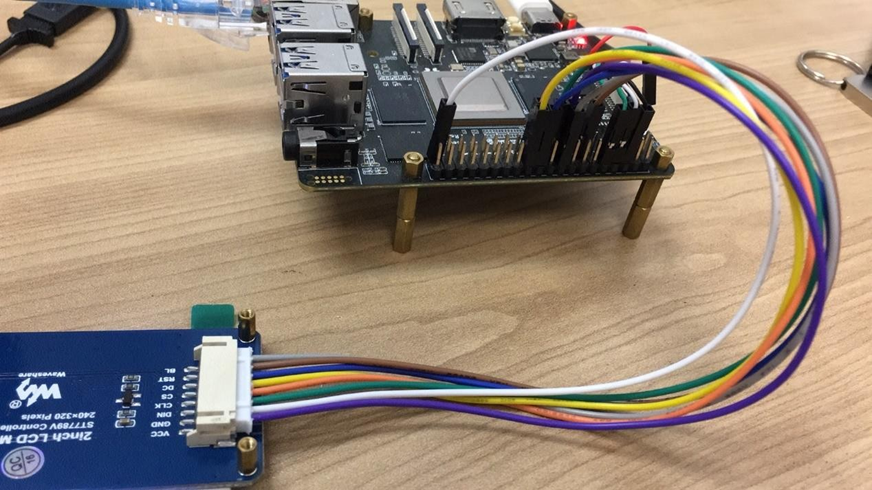

The following table and figure describe how to connect the 2inch LCD module with the 40-pin header:
2inch LCD Module | Pin Number |
---|---|
VCC | 17 |
GND | 39 |
DIN | 19 |
CLK | 23 |
CS | 28 |
DC | 22 |
RST | 13 |
BL | 18 |
The following table and figure describe how to connect the 2inch LCD module with the 40-pin header:
2inch LCD Module | Pin Number |
---|---|
VCC | 17 |
GND | 39 |
DIN | 19 |
CLK | 23 |
CS | 28 |
DC | 22 |
RST | 13 |
BL | 18 |
