Package Dimensions

The following figures show the package dimension information of JH-7110.

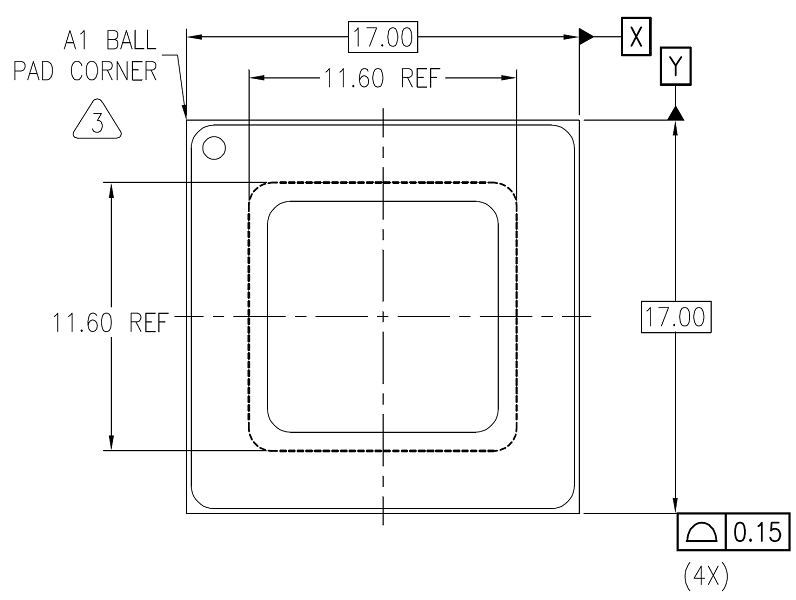

Figure 1. Package Top View

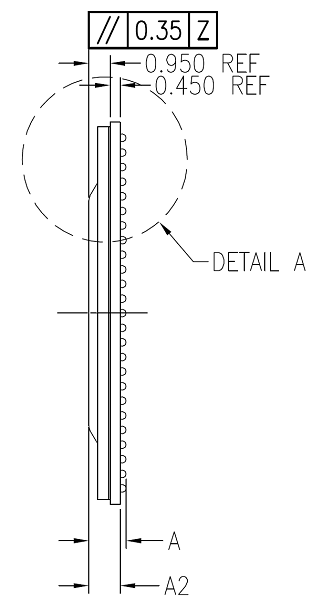

Figure 2. Package Side View

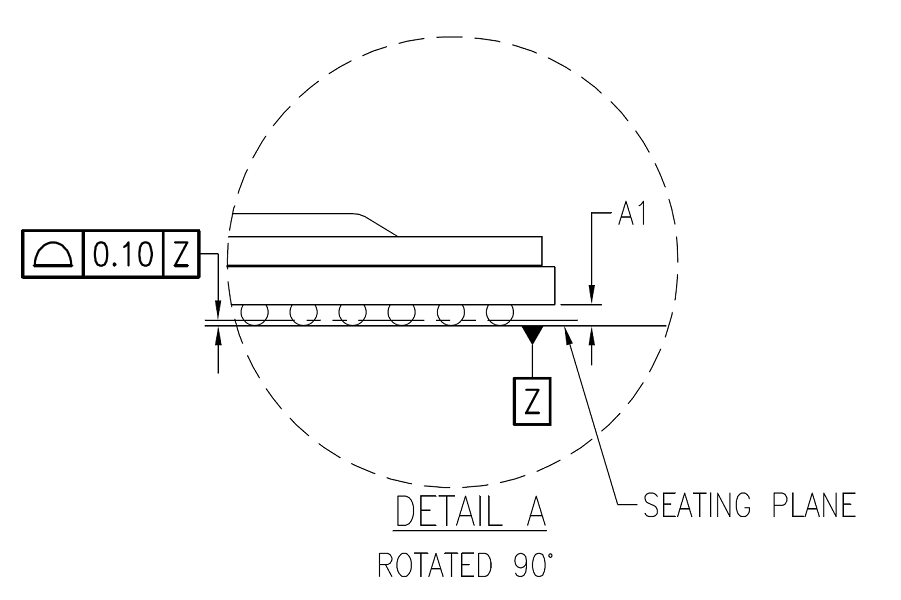

Figure 3. Package Side View Detail A

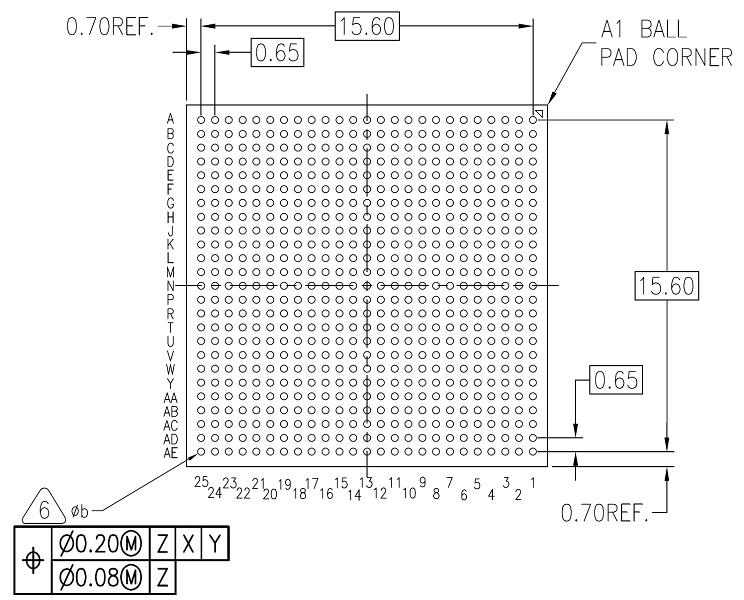

Figure 4. Package Bottom View
The following table lists the package dimensions marked in the above diagrams.
Table 1. Package Dimensions
Dimension Minimum Nominal Maximum
A -- 1.670 1.761
A1 0.220 0.270 0.320
A2 1.329 1.400 1.476
b 0.300 0.350 0.400
Number of balls: 625
Note:
  1. All dimensions and tolerance conform to the same Y14.5M-2018.
  2. Terminal positions designation per JESD 95.
  3. Corner as mentioned in Package Top View should follow details per StarFive option.
  4. Pin 1 identifier can be a chamfer, an ink mark, a lasered mark, or a metallized mark.
  5. Ball diameter after reflow.
  6. Dimension "b" as mentioned in Package Bottom View is measured at the maximum solder ball diameter parallel to primary Datum C.
  7. Use 0.35 mm raw solder ball size during assembly.
