Board Appearance

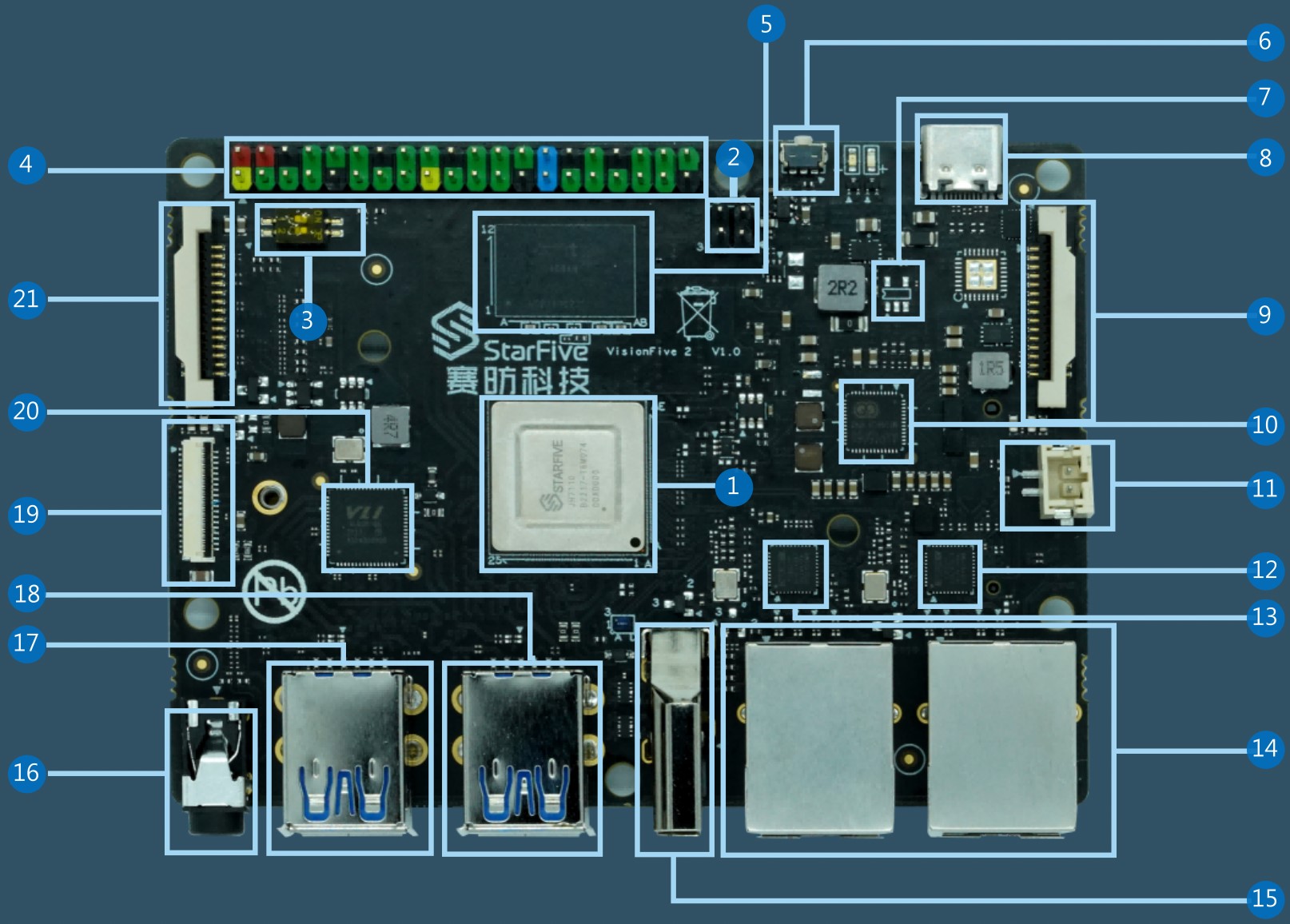

Figure 1. Board Appearance (Top View)

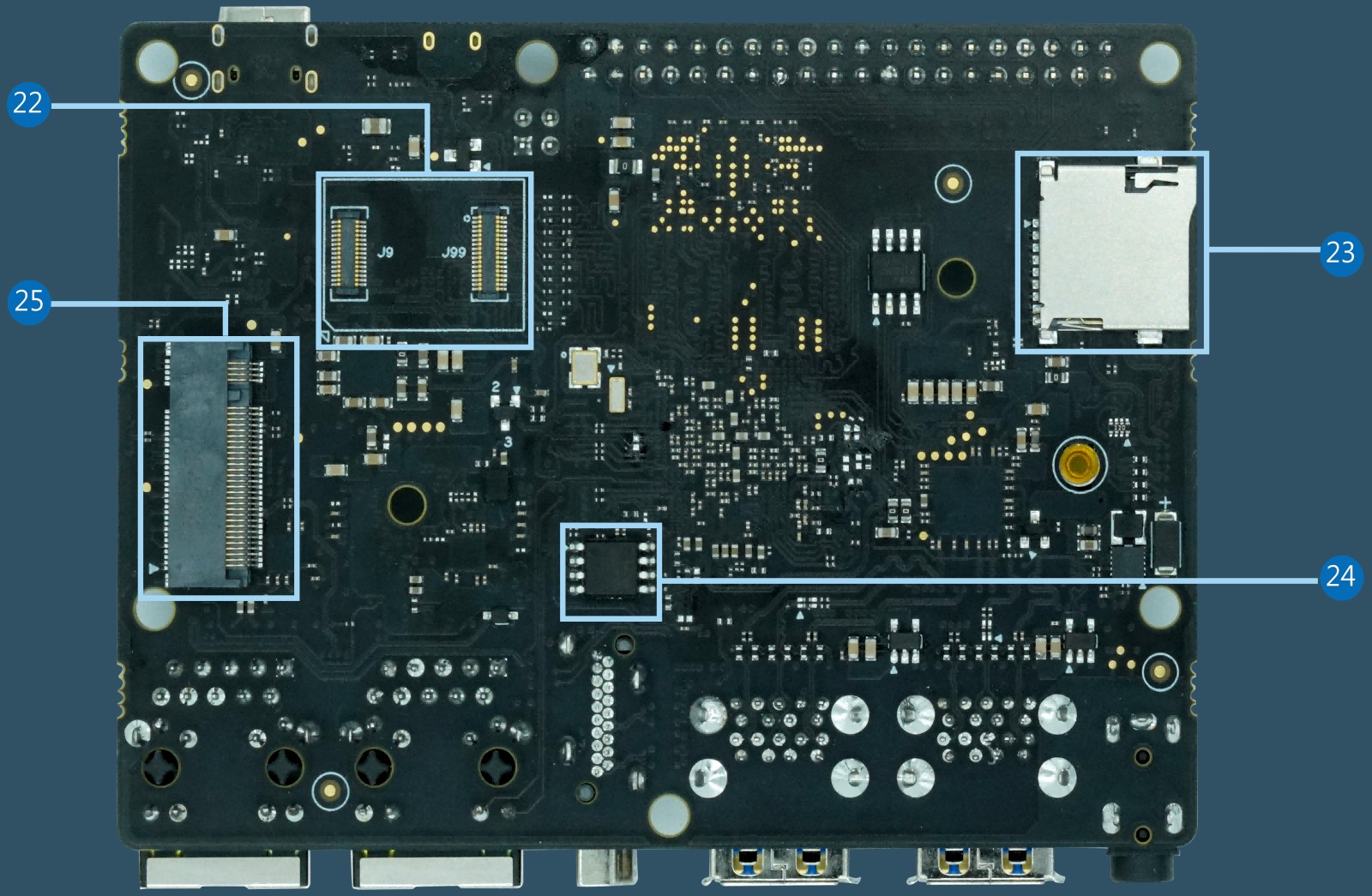

Figure 2. Board Appearance (Bottom View)
CAUTION:

During the use of VisionFive 2, avoid contact with hard objects that may cause damage.

Table 1. Board Appearance Description
No. Description No. Description
1 StarFive JH-7110 with RISC-V quad-core CPU, supporting RV64GC ISA 14 2 × Ethernet Ports (RJ45)
2 PoE Header 15 HDMI 2.0 Port
3 Boot Mode Pins 16 3.5 mm Audio Jack
4 40-Pin GPIO Header 17 2 × USB 3.0 Port
5 2 GB/4 GB/8 GB LPDDR4 SDRAM 18 2 × USB 3.0 Port
6 Reset Button 19 4-Lane MIPI DSI
7 EEPROM 20 USB 3.0 Host Controller
8 USB-C Port, supporting both charging and data transmission 21 2-Lane MIPI DSI
9 2-Lane MIPI CSI 22 eMMC Socket
10 PMIC 23 TF Card Slot
11 2-Pin Fan Header 24 QSPI Flash
12 GMAC0 PHY 25 M.2 M-Key
13 GMAC1 PHY - -
