Control Registers

The TRNG of JH-7110 has the following control registers.

Summary

The following table shows an overview of the TRNG register memory map.

Base address: 0x0

Address Offset Bits31-0 Access
0x0000 CTRL R/W
0x0004 STAT R
0x0008 MODE R/W
0x000C SMODE R/W
0x0010 IE R/W
0x0014 ISTAT R/W1C
0x001C FEATURES R
0x0020 RAND0 R
0x0024 RAND1 R
0x0028 RAND2 R
0x002C RAND3 R
0x0030 RAND4 R
0x0034 RAND5 R
0x0038 RAND6 R
0x003C RAND7 R
0x0040 SEED0 R
0x0044 SEED1 R
0x0048 SEED2 R
0x004C SEED3 R
0x0050 SEED4 R
0x0054 SEED5 R
0x0058 SEED6 R
0x005C SEED7 R
0x0060 AUTO_RQSTS R/W
0x0064 AUTO_AGE R/W
0x0068 BUILD_CONFIG R

Control Register

This register causes the TRNG to execute one of a number of actions. There are 3 commands available.

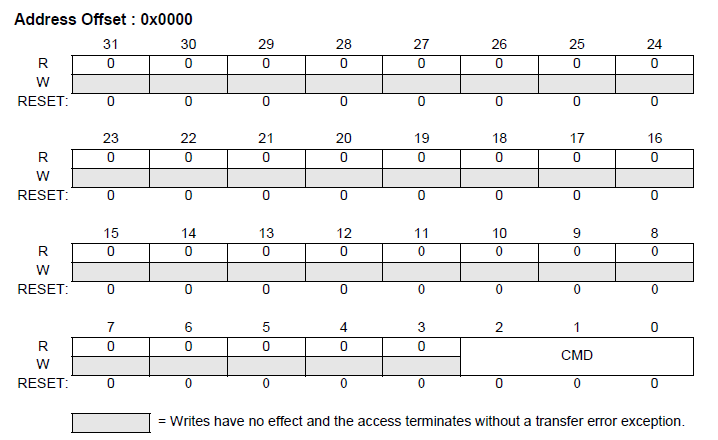

Figure 1. TRNG Control Register Description
CMD - Execute a command
  • 0x0 Execute a NOP
  • 0x1 Generate a random number
  • 0x2 Execute a random reseed
  • 0x3 Execute a nonce reseed

Status Register

Figure 2. TRNG Status Register Description
RAND_RESEEDING - Current state of random seed generation operations
  • 0 = No random reseed generation process in progress
  • 1 = Random reseed generation process in progress
RAND_GENERATING - Current state of random number generation operations
  • 0 = No random number generation process in progress
  • 1 = Random number generation process in progress
SRVC_RQST - Current state of unacknowledged request indicator
  • 0 = No unacknowledged service request
  • 1 = Unacknowledged service request
LAST_RESEED - Action which loaded current seed. Enumerated values not listed are 'reserved’
  • 0x0 = Reseeded by host random reseed command
  • 0x3 = Reseeded by nonce
  • 0x4 = Reseeded by I_reseed driven to 1 or internal auto-reseed
  • 0x7 = Unseeded (zeroized state)
SEEDED — Current SEEDED state
  • 0= PRNG core is not seeded
  • 1 = PRNG core is seeded

MISSION_MODE - Reflects state of SMODE.MISSION_MODE

R256 - Reflects state of MODE.R256

NONCE_MODE — Current state of NONCE mode
  • 0 = Nonce mode disabled
  • 1 = Nonce mode enabled

Mode Register

This register is used to set the length of the PRNG output register.

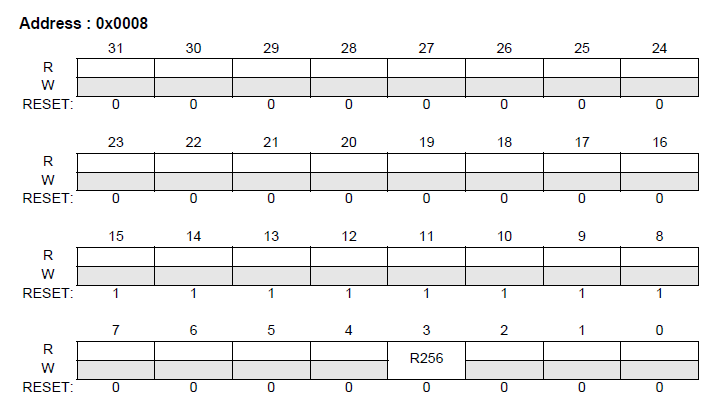

Figure 3. TRNG Mode Register Description
R256 - Current length for PRNG RANDx registers
  • 0 = PRNG set up for 128-bit maximum
  • 1 = PRNG set up for256-bit maximum

Status Mode Register

This register is used to enable or disable certain mission-mode run-time features within the core.

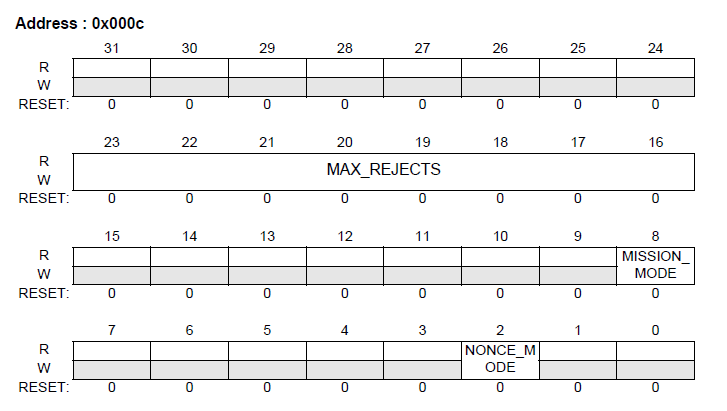

Figure 4. TRNG Status Mode Register Description

MAX_REJECTS - Maximum number of consecutive bit rejections before issuing ring tweak

MISSION_MODE - Sets the operating mode to TEST or MISSION
  • 0 = Test mode (access to internal state and test fields)
  • 1 = Mission mode (no access to internal state)
NONCE_MODE - Sets the reseed mode to nonce or random
  • 0 = Disable nonce mode
  • 1 = Enable nonce mode

Interrupt Register

This register is used to enable or disable interrupts within the TRNG. When both one of the individual enable bits and GLBL_EN bit are set to 1, an occurrence of that event drives the IRQ port to 1.
Figure 5. TRNG Interrupt Register Description
GLBL_EN - Global interrupt enable
  • 0= Globally disable interrupts
  • 1 = Globally enable interrupts
LFSR_LOCKUP_EN - Include or exclude LFSR_LOCKUP interrupt contribution
  • 0 = Disable LFSR_LOCKUP interrupt contribution
  • 1 = Enable LFSR_LOCKUP interrupt contribution
RQST_ALARM_EN - Include or exclude RQST_ALARM interrupt contribution
  • 0 = Disable RQST_ALARM interrupt contribution
  • 1 = Enable RQST_ALARM interrupt contribution
AGE_ALARM_EN - Include or exclude AGE_ALARM interrupt contribution.
  • 0 = Disable AGE_ALARM interrupt contribution
  • 1 = Enable AGE_ALARM interrupt contribution
SEED_DONE_EN — Include or exclude SEED_DONE interrupt contribution
  • 0 = Disable SEED_DONE interrupt contribution
  • 1 = Enable SEED_DONE interrupt contribution
RAND_RDY_EN — Include or exclude RAND_RDY interrupt contribution
  • 0 = Disable RAND_RDY interrupt contribution
  • 1 = Enable RAND_RDY interrupt contribution

Interrupt Status Register

This register allows the user to monitor the interrupt and/or status contributions of the TRNG.

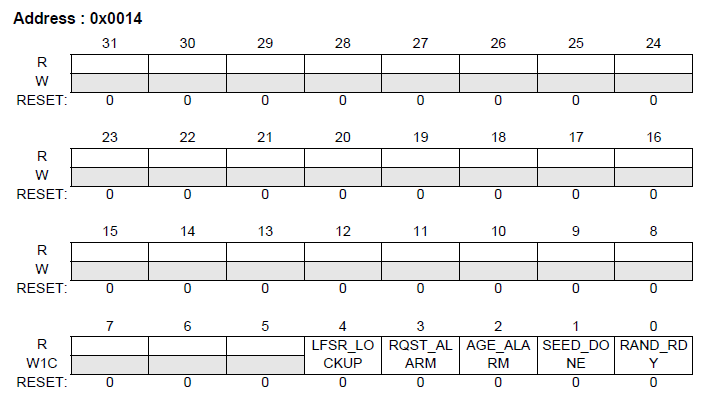

Figure 6. TRNG Interrupt Status Register Description
LFSR_LOCKUP_EN - Status and acknowledgment (clearing) of LFSR_LOCKUP indicator
  • 0 = No unacknowledged
  • 1 = Unacknowledged
RQST_ALARM_EN - Status and acknowledgment (clearing) of RQST_ALARM indicator
  • 0 = No unacknowledged
  • 1 = Unacknowledged
AGE_ALARM_EN - Status and acknowledgment (clearing) of AGE_ALARM
  • 0 = No unacknowledged
  • 1 = Unacknowledged
SEED_DONE_EN - Status and acknowledgment (clearing) of SEED_DONE
  • 0 = No unacknowledged
  • 1 = Unacknowledged
RAND_RDY_EN - Status and acknowledgment (clearing) of RAND_RDY
  • 0 = No unacknowledged
  • 1 = Unacknowledged

Features Register

This register contains the build-time parameter enumerations.

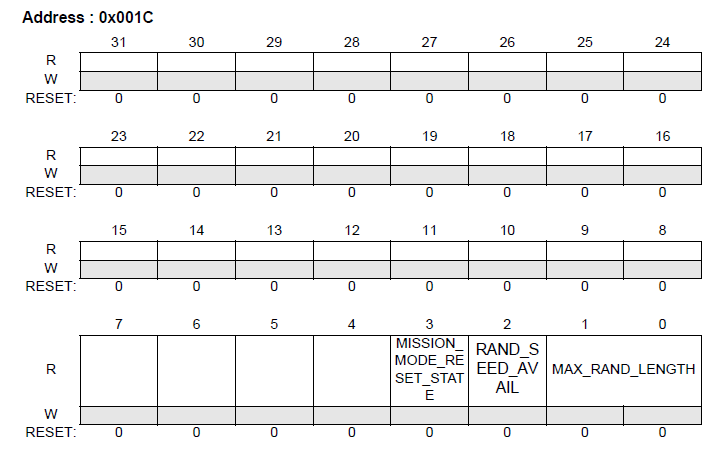

Figure 7. TRNG Features Register Description
MISSION_MODE_RESET_STATE - Indicates state of SMODE.MISSION_MODE reset state
  • 0 = Resets to TEST_MODE
  • 1 = Resets to MISSION_MODE
RAND_SEED_AVAIL - Indicates the ring-oscillator sub-section is present.
  • 0 = This build-time configuration parameter is not customer modifiable.

    No ring-oscillator seed generator present

  • 1 = Ring-oscillator seed generator present
MAX_RAND_LENGTH — Maximum length of the PRNG RANDx register set
  • 0 = PRNG setup for 128-bit maximum
  • 1 = PRNG setup for 256-bit maximum

RAND0 - RAND7 Registers

The RAND0 - RAND7register set which are used by the host to read the newly generated random number.

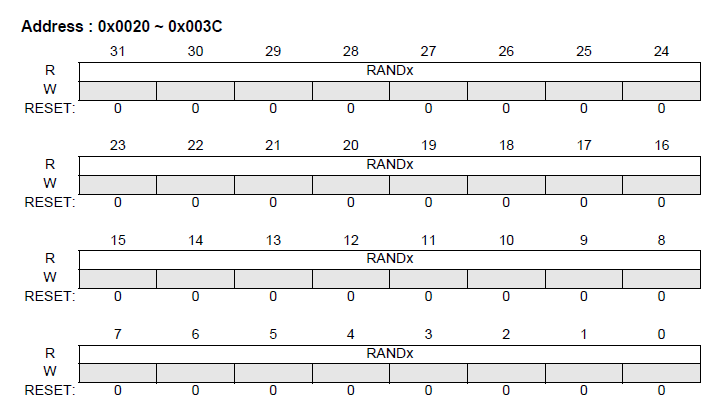

Figure 8. TRNG RANDx Register Description

RANDx - Random data word.

SEED0 - SEED7 Registers

The SEEDx register sets are used to load a host generated nonce seed into the TRNG. These registers are also used in several test modes to access internal data.

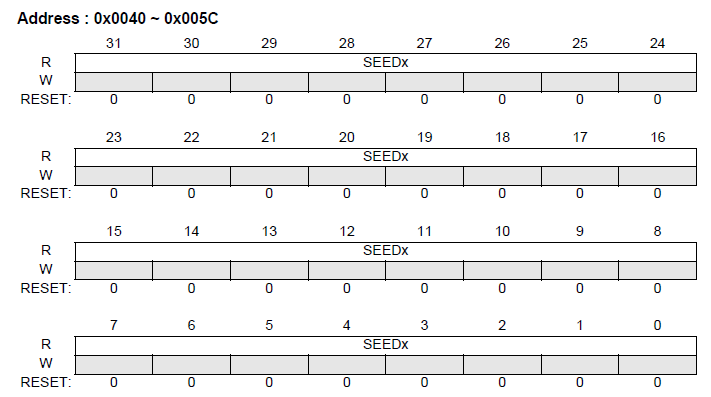

Figure 9. TRNG SEEDx Register Description

SEEDx - Seed data word.

Auto Request Register

This register allows the TRNG to generate a reseed reminder alarm after a specified number of random numbers have been requested by the host. If the RQSTS field holds a value of 0, this feature is disabled and no AUTO_RQSTS alarms are generated.

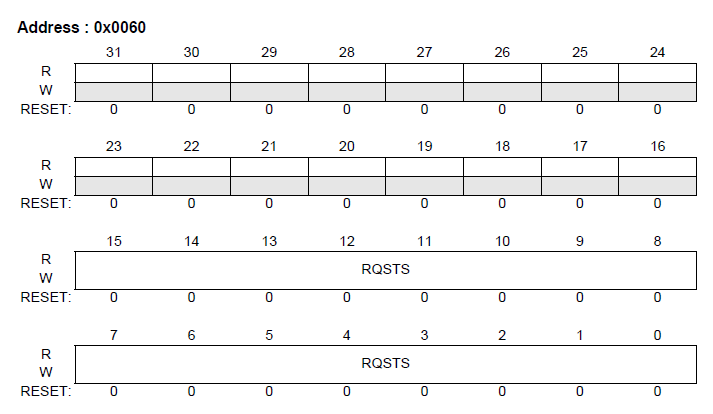

Figure 10. TRNG Auto Request Register Description
RQSTS - Request Counter
  • 0 = disable the AUTO_RQSTS alarm feature
  • other = reload value for internal AUTO_RQSTS counter

Auto Age Register

This register allows the TRNG to generate a reseed reminder alarm after a specified number of random numbers have been requested by the host. If the AGE field holds a value of 0, this feature is disabled and no AUTO_AGE alarms are generated.

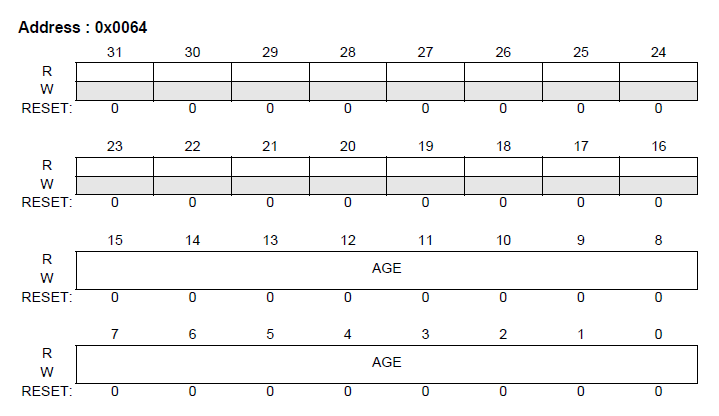

Figure 11. TRNG Auto Age Register Description
AGE — Age Counter
  • 0 = disable the AUTO_AGE alarm feature
  • other = reload value for internal AUTO_AGE counter

Build Configure Register

This register contains the Build-time parameter enumerations.

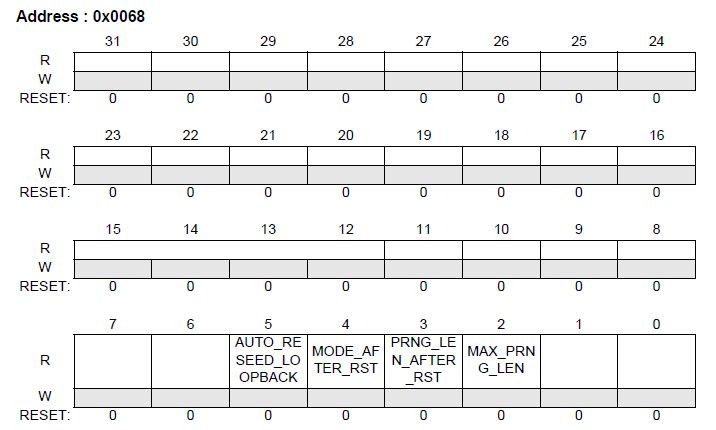

Figure 12. TRNG Build Configure Register Description
AUTO_RESEED_LOOPBACK - Indicates auto-reseed configuration setting
  • 0 = No auto-reseed loopback
  • 1= Auto-reseed loopback present
MODE_AFTER_RST - Indicates state of SMODE.MISSION_MODE reset state
  • 0 = Resets to TEST_MODE
  • 1= Resets to MISSION_MODE
PRNG_LEN_AFTER_RST - State of MODE.R256 after reset
  • 0 = PRNG length set to128-bit after reset
  • 1 = PRNG length set to 256-bit after reset
MAX_PRNG_LEN— Maximum length of the PRNG RANDx register set
  • 0 = PRNGsetupfor128-bitmaximum
  • 1 = PRNG set up for 256-bit maximum
