Hardware Setup
The following table and figure describe how to connect LED to the 40-pin GPIO Header:
LED | 40-Pin GPIO Header | |
---|---|---|
Pin Number | Pin Name | |
Positive | 36 | GPIO40 |
Negative | 34 | GND |

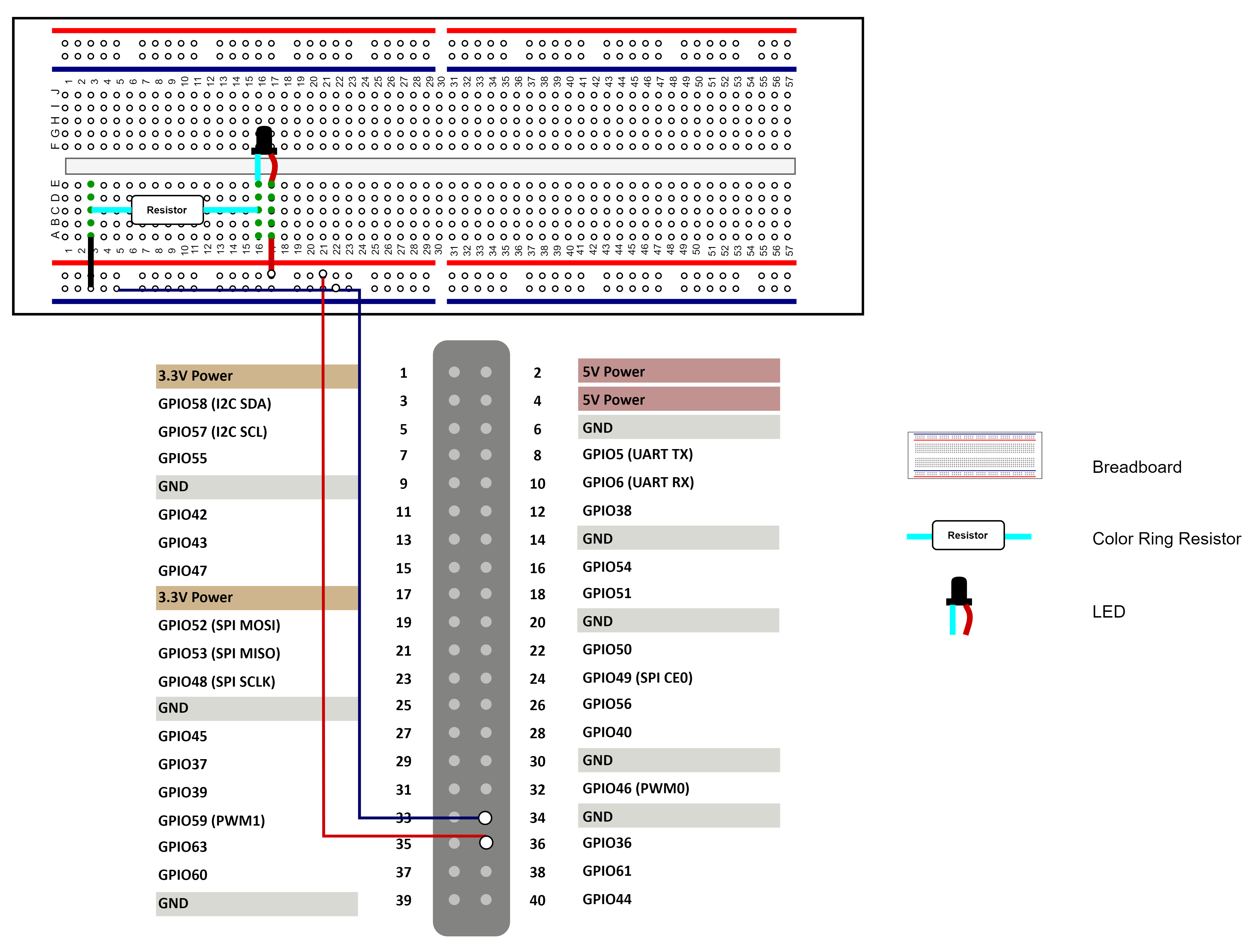

Perform the following to connect the LED to the 40-pin GPIO Header:
- Connect GPIO36 pin of VisionFive 2 to the red line of the breadboard.
- Set up the resistor as shown in the following figure.
- Connect the longer leg of the LED to the red line of the breadboard.
- Connect the shorter leg of the LED to the blue line of the breadboard.
- Connect the GND pin of VisionFive 2 to the blue line of the breadboard.
