2-Lane MIPI DSI Pin Definition

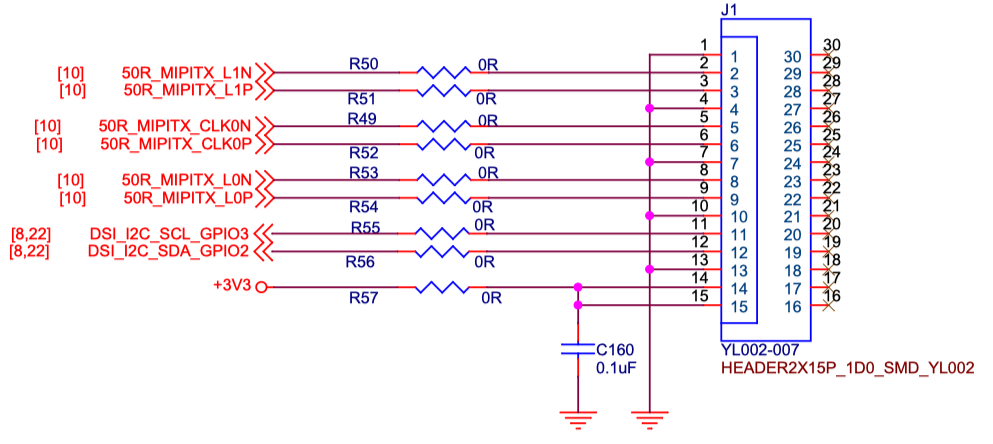

The following figure and table describe the 2-lane MIPI DSI definition:
| PIN NO. | Pin Definition | Description | Voltage |
|---|---|---|---|
| 1 | GND | Ground | - |
| 2 | 50R_MIPITX_L1N | MIPI Output Lane 1 Negative | 1.8V |
| 3 | 50R_MIPITX_L1P | MIPI Output Lane 1 Positive | 1.8V |
| 4 | GND | Ground | - |
| 5 | 50R_MIPITX_CLK0N | MIPI Output Clock 0 Negative | 1.8V |
| 6 | 50R_MIPITX_CLK0P | MIPI Output Clock 0 Positive | 1.8V |
| 7 | GND | Ground | - |
| 8 | 50R_MIPITX_L0N | MIPI Output Lane 0 Negative | 1.8V |
| 9 | 50R_MIPITX_L0P | MIPI Output Lane 0 Positive | 1.8V |
| 10 | GND | Ground | - |
| 11 | DSI_I2C_SCL_GPIO3 | DSII2C SCL | 3.3V |
| 12 | DSI_I2C_SDA_GPIO2 | DSII2C SDA | 3.3V |
| 13 | GND | Ground | - |
| 14 | +3.3V | Power Voltage for digital circuit 3.3 V | 3.3V |
