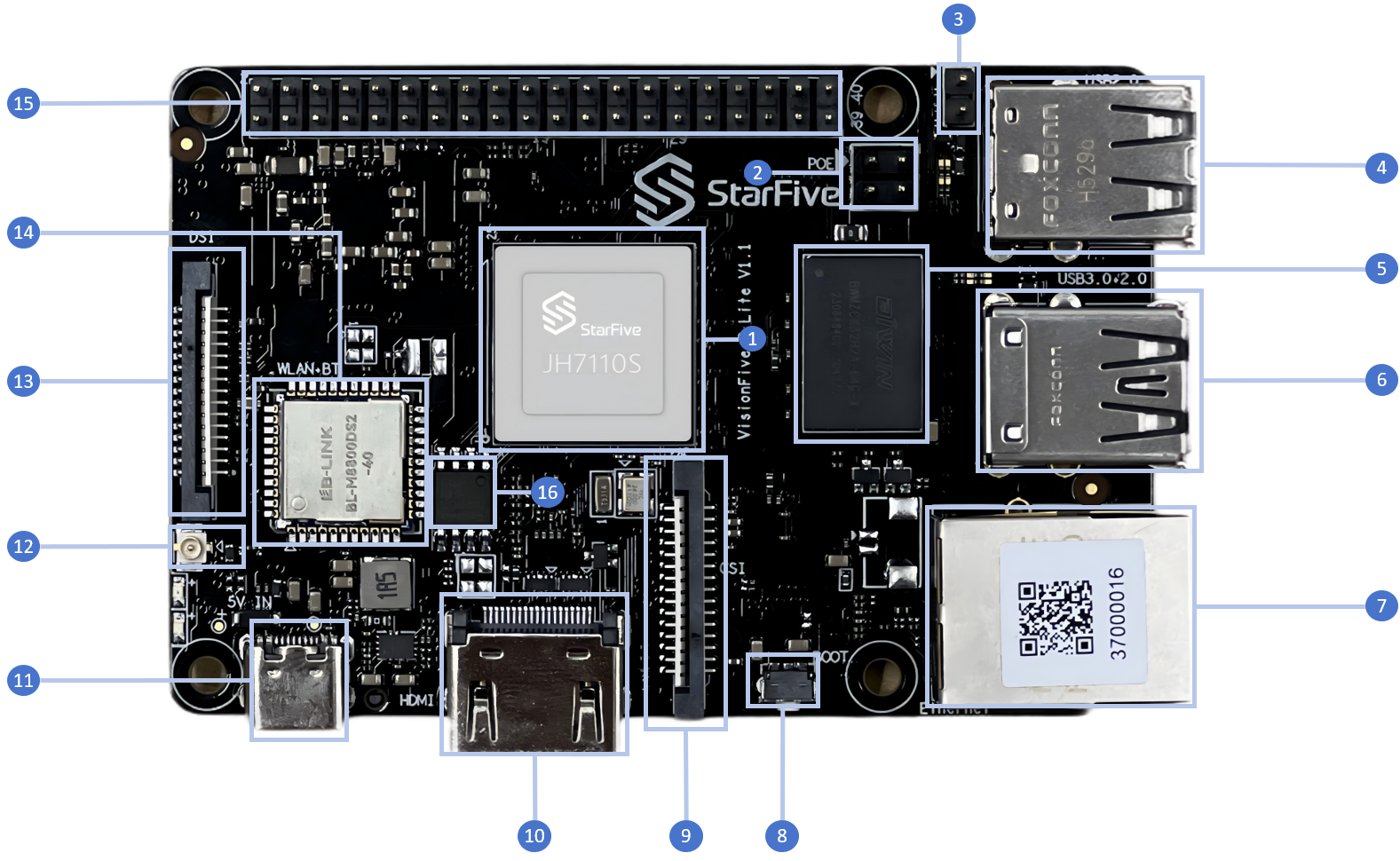

Board Appearance
CAUTION:
During the use of VisionFive 2 Lite, avoid contact with hard objects that may cause damage.
| No. | Description | No. | Description |
|---|---|---|---|
| 1 | StarFive JH-7110S with RISC-V quad-core CPU, supporting RV64GC ISA | 12 | 2.4G/5.8GHz Antenna Connector |
| 2 | PoE Header | 13 | 2-Lane MIPI DSI |
| 3 | Fastboot pins1 | 14 | WiFi/BT module |
| 4 | 2× USB 2.0 Port | 15 | 40-Pin GPIO Header |
| 5 | 2GB/4GB/8GB LPDDR4 SDRAM | 16 | QSPI Flash |
| 6 | 1× USB 3.0 Port and 1×USB 2.0 Port | 17 | EEPROM |
| 7 | 1× Ethernet Port (RJ45) | 18 | PMIC |
| 8 | Recovery Button | 19 | TF card slot (TF version) |
| 9 | 2-Lane MIPI CSI | 20 | M.2 M key |
| 10 | HDMI 2.0 Port | 21 | Onboard eMMC (eMMC version) |
| 11 | USB Type C | 22 | USB2.0 Hub FE1.1S |
| - | - | 23 | GMAC0 PHY |
1 Short these pins before powering on the board to
force entry to the U-Boot Fastboot mode on startup.
